Model 3100 | Permanent Magnet Motors

Request a Quote
3100 Motor 12 & 180 VDC side
3100 Motor 12 & 180 VDC side
3100 Motor 12 & 180 VDC front
3100 Motor 12 & 180 VDC back

Product Overview

The 3100 is a versatile permanent magnet DC motor (PMDC) capable of AC (with available rectifier) and DC input power, this 12v permanent magnet motor is suited for multiple applications.

  • We have a minimum order quantity of 100 units on all custom designs.
  • The model shown is representative of an OEM-specified design and is not available for direct sale to consumers.

Quick Specs

Housings
Zinc and aluminum ends with steel center
Bearings
Ball
Brush Structure
External or internal
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face or base
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.375, .4375, .500
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
12-90 & 180 VDC
Winding
Ceramic magnet
RPM
Up to 10,000
Horsepower Range
1/15 HP thru 1.5 HP

Features

  • UL approved motor
  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Geared models available
  • Linear torque curve

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options
  • Base mounting available

Motor Versions

Open VentilatedTotally Enclosed
R.P.M.OZ.IN.H.P.OZ.IN.H.P.
100001381.368
75001611.203
5000152.73750.250
3600148.52964.228
2400142.33975.179
1800146.26070.124
1200153.18187.103
900142.12689.079

Motor Rating* Continuous duty open ventilated Power Supply- Single phase full wave rectified

* Greater horsepower ratings are available intermittent duty applications if the duty cycle is such that on and off periods allow the motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Linear torque curve
  • Longer life
  • Lower operating speeds
  • Ideal for use with gear reducers

Applications

  • Capstan hoist
  • Electric lawn mower
  • Outboard motor/Trim motor

Technical Drawings

Model 3100 Drawings

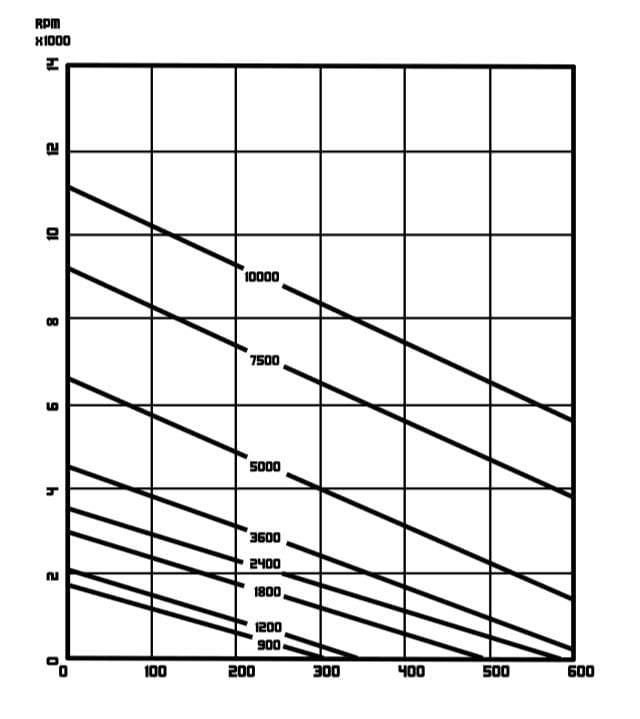

Motor Performance Curves

These motor performance curves are representative of the open ventilated, continuous duty, class “A” temperature classification ratings as shown in the table on the reverse side of this bulletin.

Model 3100 Performance Chart
