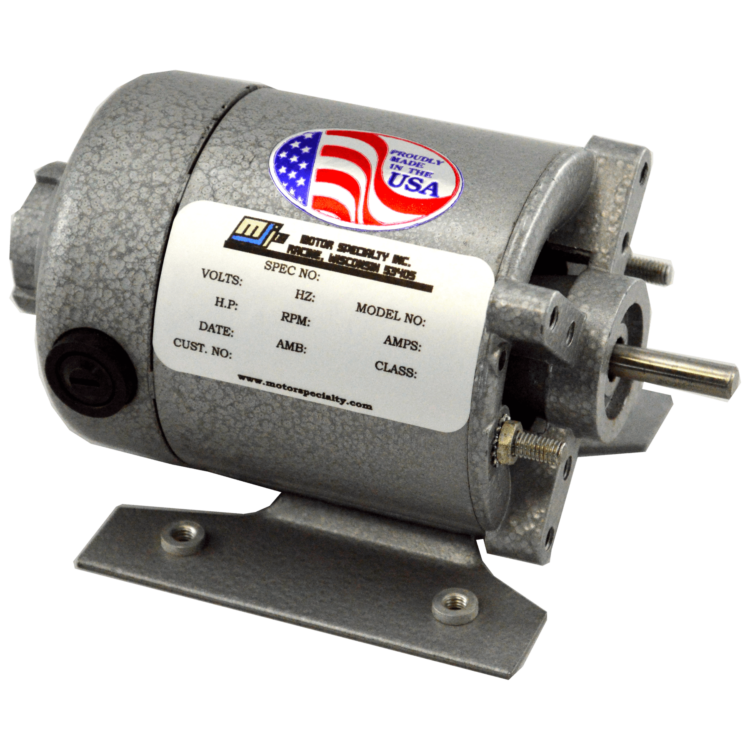

2600 Universal 115 VAC 12 VDC side
2600 Universal 115 VAC 12 VDC side

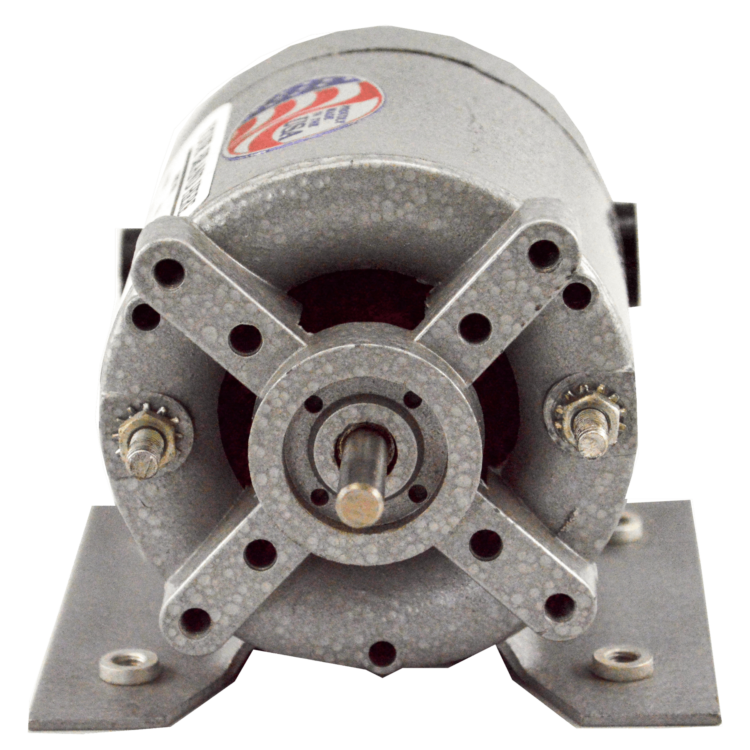

2600 Universal 115 VAC 12 VDC front

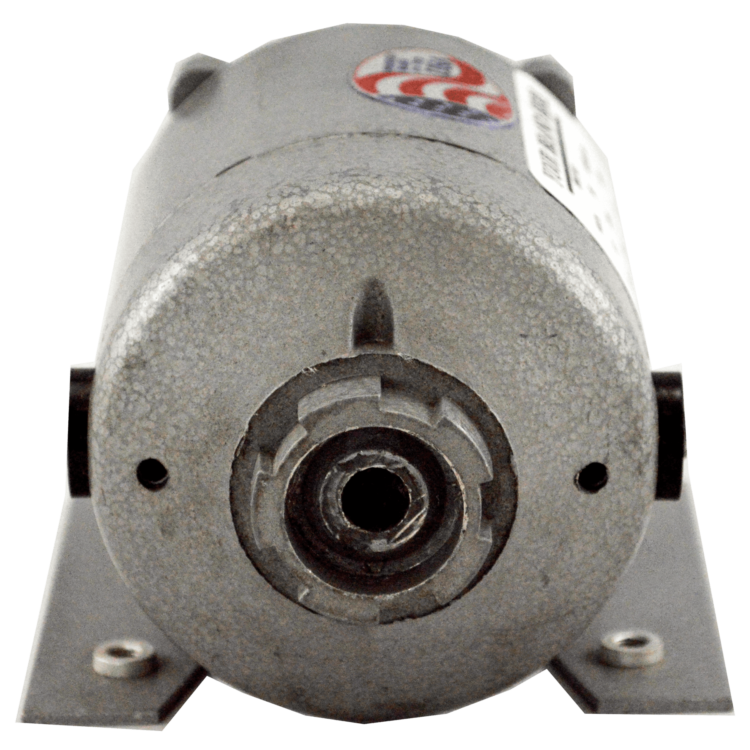

2600 Universal 115 VAC 12 VDC back

Product Overview

The 2600 is a versatile universal motor capable of 115 volt AC and 12 volt DC input power, suited for multiple applications.

  • We have a minimum order quantity of 100 units on all custom designs.
  • The model shown is representative of an OEM-specified design and is not available for direct sale to consumers.

Quick Specs

Housings
Zinc die cast ends with steel center
Bearings
Ball
Brush Structure
External
Cord or Leads
Various plug configurations or insulation jackets
Mounting
Face or base
Rotation
C.W., C.C.W., Reversible
Shaft Diameter
.250, .3125, .315
Shaft Extension
Single or double
Ventilation
Totally enclosed or open ventilated
Voltage
115/230 VAC12-90 VDC (Standard)
Winding
Series or shunt
RPM
Up to 10,000
Horsepower Range
1/8 HP thru 1/4 HP

Features

  • Class A insulation (105°C)
  • Durable silver hammer finish
  • Compact design

Options

  • Thermal protection available
  • Class F insulation available
  • Alternate shaft materials
  • Various color options

Motor Versions

R.P.M.OZ. IN.H.P.
1000025.250
750025.187
500025.125

Motor Rating* Continuous duty open ventilated.

* Greater horsepower ratings are available for intermittent duty applications if the duty cycle is such that on and off periods allow motors to stay within the temperature rise limit of the insulation system.

Benefits

  • Manufactured in the USA
  • Easily customized

Applications

  • Office equipment
  • Industrial scroll saw
  • Portable perforator

Technical Drawings

Model 2600 Drawings

Motor Performance Curves

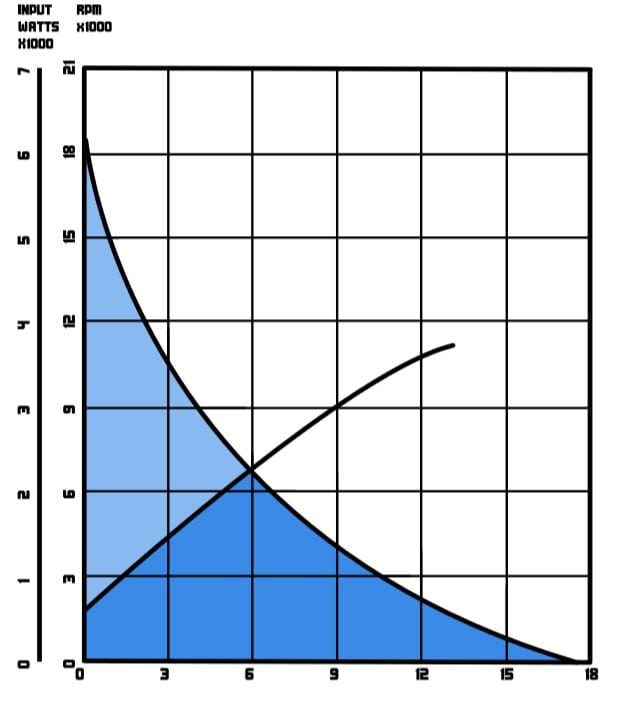

The motor performance curve is representative of Model 2600 at rated HP at 10,000 RPM continuous duty.

Model 2600 Performance Chart
